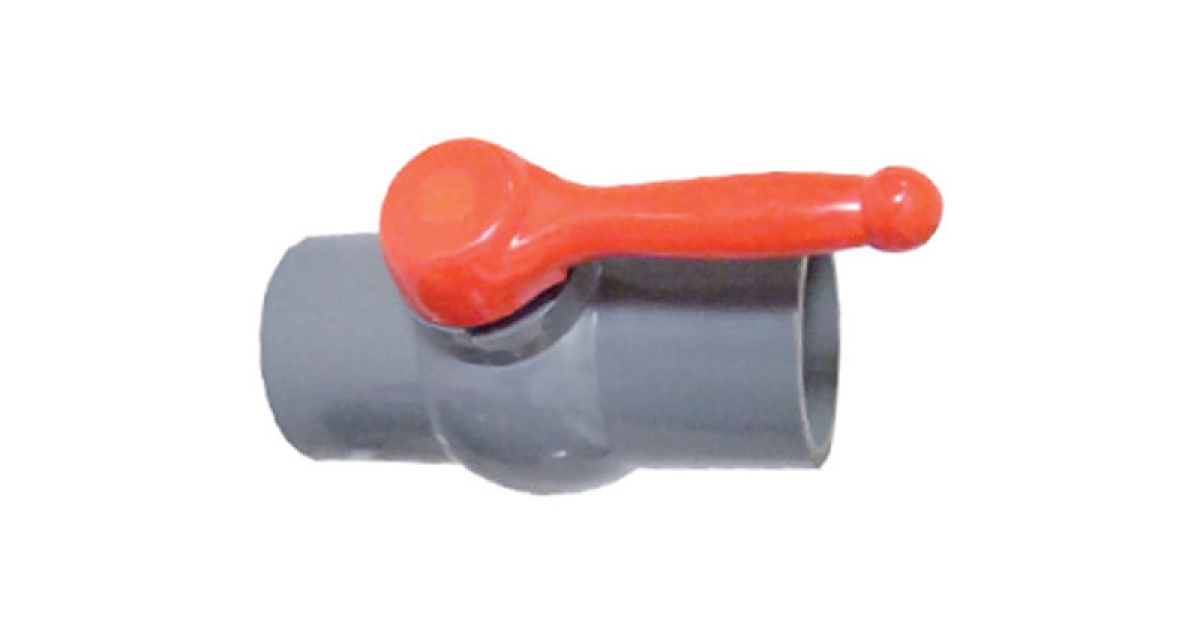

Plastic Ball Valve
| Body | Plastic | ||
| Connection | Threaded | ||
| Body Type | Single piece | ||
| Bore Type | Full Bore | ||
| Working Temp. | -10 ºC….+70 ºC | ||
| Pressure Class | PN10 | ||
| Application Areas | Hot and Cold Water Systems | ||
| Compressed Air System | |||
| Non-acidic and non-flammable liquid fluids |
| CODE | SIZE | QUANTITY IN BOX | |
| DN (mm) | Inch | ||
| 151 | DN15 | 1/2'' | 100 |
| 152 | DN20 | 3/4'' | 60 |
| 153 | DN25 | 1'' | 40 |
| 154 | DN32 | 1 1/4'' | 50 |
| 155 | DN40 | 1 1/2'' | 40 |
| 156 | DN50 | 2'' | 24 |
| 157 | DN65 | 2 1/2'' | 15 |
| 158 | DN80 | 3'' | 6 |
| 159 | DN100 | 4'' | 4 |
