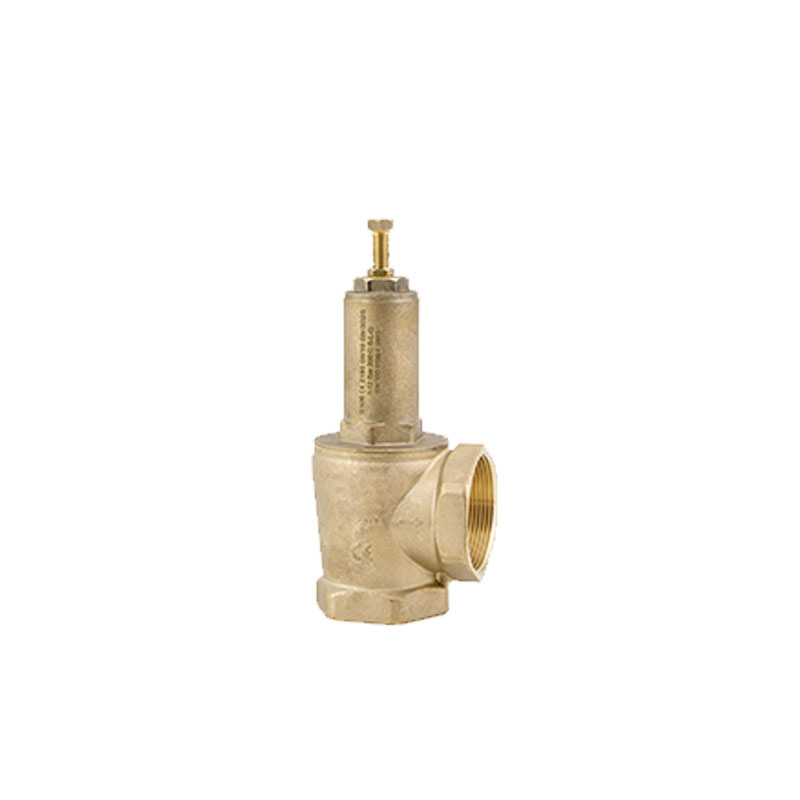

Brass Safety Valve / Italian Type
| Body | Brass | ||
| Connection | Threaded | ||
| Body Type | Italian type | ||
| Working Temp. | -10 ºC….+200 ºC | ||
| Pressure Class | PN16 | ||
| Application Areas | Hot and Cold Water Systems | ||
| Compressed Air System | |||
| Non-acidic and non-flammable liquid fluids |
| CODE | SIZE | QUANTITY IN BOX | |
| DN (mm) | Inch | ||
| 571 | DN15 | 1/2'' | 30 |
| 572 | DN20 | 3/4'' | 30 |
| 573 | DN25 | 1'' | 30 |
| 574 | DN32 | 1 1/4'' | 20 |
| 575 | DN40 | 1 1/2'' | 20 |
| 576 | DN50 | 2'' | 20 |
